ASCE 7 and the California Building Code require careful ground assessment when alluvial fans and old debris flows meet urban development. Pasadena California sits at the base of the San Gabriel Mountains, where flash floods historically deposited loose, metastable soils. These collapsible soil formations can lose up to 15 percent of their original volume when saturated under load — a hazard that standard compaction tests alone cannot predict. We follow ASTM D5333-03 procedures to evaluate collapse potential in the laboratory, combining oedometer tests with controlled inundation. For deeper profiles we pair this with MASW-Vs30 surveys to map seismic velocity contrasts, which often coincide with collapse-prone strata. The result is a clear collapse index that tells you whether your foundation needs deep support or simple pre-wetting mitigation.
A collapse index above 1 percent in Pasadena California means the soil is moderately to severely collapsible — foundation design must account for that.
Service characteristics in Pasadena California
- Collapse potential (Cp) per ASTM D5333
- Initial dry density and void ratio
- Degree of saturation before flooding
- Overburden stress at sampling depth
Critical ground factors in Pasadena California
A recurring mistake we see in Pasadena California is assuming that a high blow count in the SPT means the soil is dense and stable. In collapsible formations, the loose structure can yield N-values of 8 to 12 due to capillary suction and slight cementation, but once water is introduced — from a broken irrigation line or seasonal rain — the soil structure collapses. The foundation then settles unevenly, cracking slabs and tilting footings. That is why we always recommend combining SPT with collapse testing on undisturbed samples. Skipping this step can lead to expensive post-construction repairs that are far harder to fix than a simple pre-wetting program.
Our services
We offer two complementary services to address collapsible soil evaluation in Pasadena California, each tailored to the site conditions and project budget.
Laboratory Collapse Testing on Undisturbed Samples

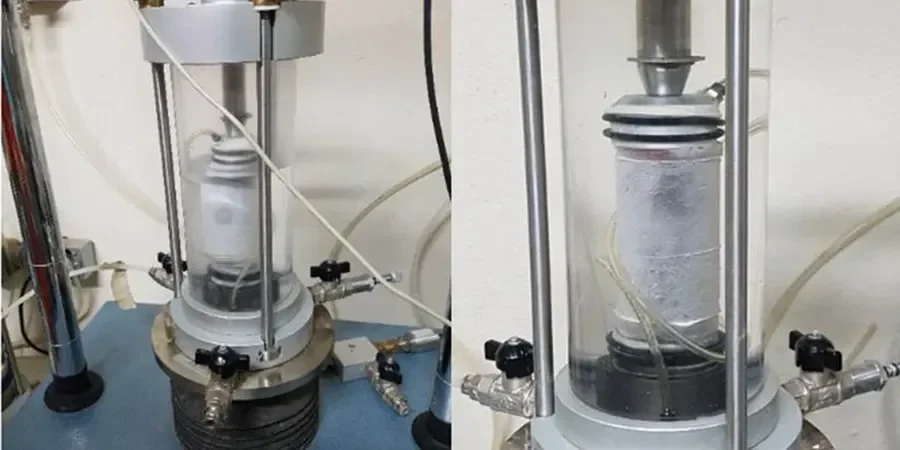

Shelby tube samples are retrieved from target depths and tested in a fixed-ring oedometer. We measure collapse strain after 24 hours of inundation at representative overburden stress. Results include the collapse index, initial void ratio, and classification per ASTM D2487.
Field Infiltration & Moisture Monitoring
Double-ring infiltrometers and neutron probe measurements assess the actual wetting front depth beneath the site. This data is used to calibrate the collapse potential for the specific rainfall and irrigation patterns of Pasadena California.
Common questions
What is collapsible soil and why does it matter in Pasadena California?
Collapsible soil is a loose, metastable deposit that loses volume rapidly when wetted under load. In Pasadena California, alluvial fans from the San Gabriel Mountains contain silty sands and low-plasticity silts that are prone to collapse. If not identified early, this can cause differential settlement of foundations, slabs, and retaining walls.
How much does a collapsible soil evaluation cost in Pasadena California?
The cost typically ranges from US$880 to US$2,860 depending on the number of depth intervals tested, the need for undisturbed sampling, and the inclusion of field infiltration measurements. We provide a detailed quote after reviewing your project scope and site access.
What ASTM standard covers collapsible soil testing?
ASTM D5333-03 is the primary standard for measuring collapse potential of soils. It specifies loading an undisturbed sample to the overburden stress, then flooding it while monitoring vertical strain over 24 hours. We also follow ASTM D2435 for consolidation and ASTM D2487 for soil classification.
