Laboratory CBR Test in Pasadena, California

A common mistake we see contractors make in Pasadena is assuming the native soil beneath a parking lot or residential driveway can support pavement loads without verification. The alluvial fans and old debris flows that shaped this part of the San Gabriel Valley left behind highly variable soils — from stiff sandy clays to loose silty sands. Without a laboratory CBR test, you are essentially guessing the subgrade’s California Bearing Ratio. We have seen 4-inch asphalt sections crack within two years because the design assumed a CBR of 8 when the actual value was 3. Running a proper CBR in the lab, paired with a subgrade soil classification using ASTM D2487, gives you a defensible number for pavement thickness design.

A soaked CBR below 5 in Pasadena’s alluvial soils means you need a stabilized subbase or thicker pavement section to avoid rutting.

Service characteristics in Pasadena California

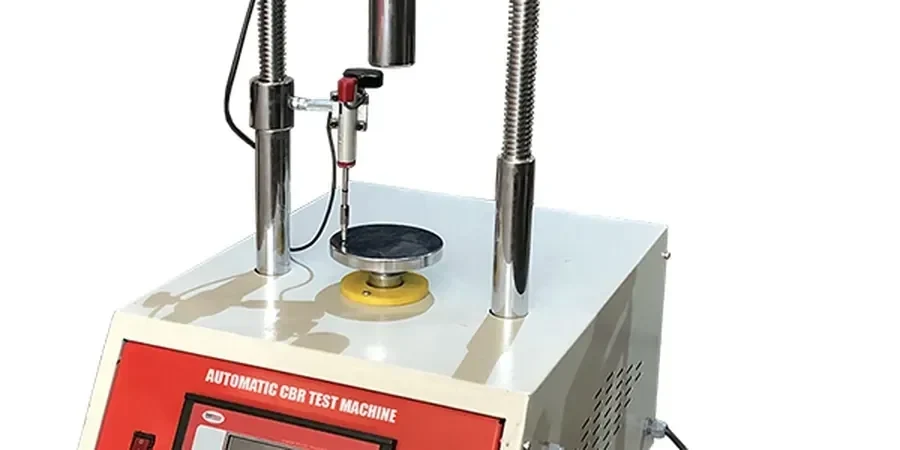

Pasadena’s urban expansion along Colorado Boulevard and into the foothills put pavement on everything from decomposed granite to old streambed deposits. A laboratory CBR test under ASTM D1883-16 measures the resistance of compacted soil to penetration under controlled moisture conditions. We typically test samples at 95% of the maximum dry density obtained from a Proctor compaction test (ASTM D698 or D1557) and at both optimum moisture content and soaked conditions. The soaked CBR reflects the worst-case scenario after seasonal rains, which in Pasadena can saturate shallow subgrades. Our lab procedure follows the standard 48-hour soak period, recording penetration at 0.1 and 0.2 inches. The ratio is then calculated against the standard crushed-stone value of 1,000 psi — a method that has been used since the California Division of Highways developed it in the 1920s.

Laboratory CBR Test in Pasadena, California – Why Subgrade Strength Matters

Parameter	Typical value
Standard	ASTM D1883-16 (CBR of Laboratory-Compacted Soils)
Sample preparation	Compacted at optimum moisture content per ASTM D698 or D1557
Soaking period	48 hours (96 hours optional for expansive soils)
Penetration recording	Load readings at 0.025, 0.050, 0.075, 0.100, 0.150, 0.200, 0.250, 0.300, 0.400, 0.500 in
Reported value	CBR at 0.1 and 0.2 in penetration (higher of the two used)
Typical range for local soils	CBR 2–15 for native Pasadena subgrades

Critical ground factors in Pasadena California

We worked on a site near the Rose Bowl where a 10-inch concrete pavement was specified over a subgrade that had never been tested. After a winter with above-average rainfall, the clay layer beneath the base course lost over half its strength. The slab started pumping fines at the joints within six months. That job ended with a full-depth reclamation — a cost that could have been avoided with two soaked CBR tests. For any pavement project in Pasadena, ignoring the laboratory CBR test is a gamble. The variability of the local alluvium means one spot can test at CBR 12 and another at CBR 3. You need at least one test per soil type encountered in the subgrade investigation.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Applicable standards: ASTM D1883-16, ASTM D698 / D1557 (Proctor compaction), AASHTO T193, Caltrans Standard Specifications Section 26

Our services

We provide two complementary laboratory CBR services to match your project phase and budget:

Soaked Laboratory CBR Test

Standard 48-hour soak test per ASTM D1883. Includes compaction at optimum moisture, soaking, and penetration testing. Ideal for pavement design on Pasadena residential streets, parking lots, and light commercial slabs.

Unsoaked CBR with Rapid Turnaround

Same test procedure without the 48-hour soak. Results in 2–3 days. Useful for preliminary design checks or low-risk subgrades where seasonal saturation is unlikely, such as elevated fills above Pasadena’s Arroyo Seco.

Common questions

What is the difference between laboratory CBR and field CBR?

Laboratory CBR tests a compacted sample at controlled moisture and density, so it reflects how the soil will behave once placed and compacted in the field. Field CBR tests the in-situ soil at its natural moisture and density. For pavement design in Pasadena, we usually recommend laboratory CBR because it matches the compaction conditions you will achieve during construction.

How many CBR tests do I need for a Pasadena subdivision street?

For a typical residential street, we recommend at least one laboratory CBR test per distinct soil unit identified in the geotechnical investigation. If the subgrade is uniform — say, a consistent silty sand from the Arroyo Seco area — two tests may be enough. For variable alluvial deposits common in the San Gabriel Valley, plan for three to five tests along the alignment.

Can I use a CBR value from a nearby project instead of testing my own soil?

Not reliably. We have seen CBR values vary by a factor of 4 within the same block in Pasadena due to old stream channels and buried debris. Borrowing a value from a neighbor site may lead to an under-designed pavement that fails in a few years. It is safer to run your own laboratory CBR test on representative samples from the actual subgrade.
