Pasadena sits at the base of the San Gabriel Mountains, where alluvial fans and old debris flows create a complex subsurface. The city's semi-arid climate means dry summers and occasional heavy winter rain, which can quickly saturate slopes and trigger erosion. For any road embankment design in Pasadena, understanding how these alluvial soils behave under load and moisture change is non-negotiable. The area's seismic setting further complicates things: a moderate earthquake could destabilize poorly compacted fills. That is why every design starts with a thorough site investigation, including a MASW Vs30 survey to map shear-wave velocity profiles and classify the site per ASCE 7.
In Pasadena's alluvial fans, the key to a stable road embankment is controlling water before it reaches the fill mass.
Service characteristics in Pasadena California
- Clearing and grubbing of the native alluvium
- Compaction in 8-inch lifts at 95% of Modified Proctor
- Installation of subsurface drainage to prevent saturation from winter storms
Live process video
Critical ground factors in Pasadena California

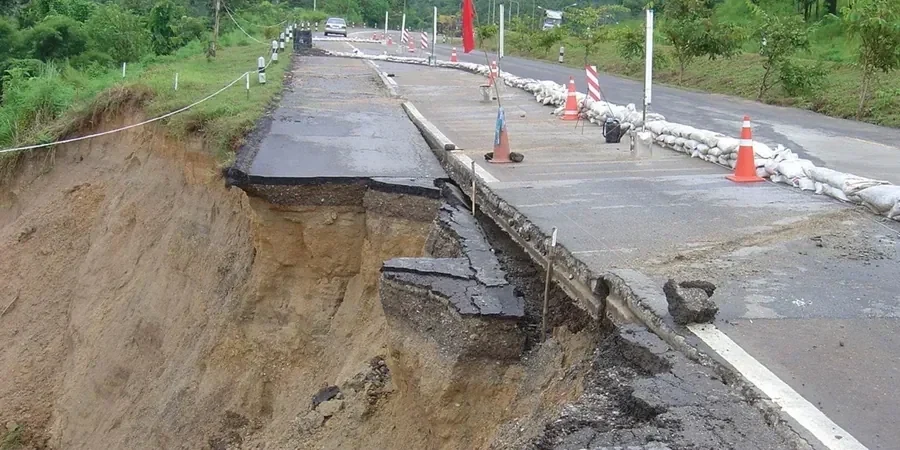

Pasadena's rapid growth from the 1920s onward pushed development onto steeper hillsides and older alluvial terraces. Many of these areas were filled without modern compaction control. The result is a patchwork of loose, collapsible soils that settle unpredictably when wetted. During heavy El Niño winters, several road embankments in the city have experienced slope failures and shoulder cracking. Seismic risk compounds the issue: a M6.7 earthquake on the nearby Raymond Fault could trigger liquefaction in loose fills beneath roadways. A solid road embankment design must account for both static settlement and dynamic loading.
Our services
We offer two core services tailored to road embankment design in Pasadena:
Subsurface Investigation & Soil Characterization
Boreholes, test pits, and In-Situ (SPT, CPT) to classify soils, measure density, and locate groundwater. Results feed directly into embankment geometry and compaction specs.
Slope Stability & Settlement Analysis
Limit-equilibrium and finite-element modeling to evaluate factor of safety under static and seismic conditions. Includes consolidation analysis for soft alluvial layers beneath the fill.
Common questions
What are the most common soil types encountered in Pasadena for road embankment construction?
The alluvial fans produce well-graded sands and gravels (SW, GW) with occasional silt layers. Hillside areas contain silty sands (SM) and colluvium. Clay-rich soils are less common but can appear near the Arroyo Seco.
How much does a road embankment design study cost in Pasadena?
A typical geotechnical study for a road embankment in Pasadena ranges between US$1.230 and US$4.800, depending on the number of borings, lab tests, and the complexity of the slope analysis.
What is the minimum compaction requirement for embankment fills in Pasadena?
Most local jurisdictions and Caltrans require 95% of Modified Proctor maximum dry density. For high-traffic roadways or fills thicker than 10 feet, 98% is often specified.
