Existing Pavement Evaluation in Pasadena California

Under the framework of IBC and ASCE 7, a thorough existing pavement evaluation in Pasadena California must account for the region's alluvial fan deposits and variable subgrade moisture conditions. The San Gabriel Valley's sandy and silty soils, combined with a Mediterranean climate that produces dry summers and occasional intense winter storms, create unique challenges for pavement longevity. We follow ASTM D4694 for deflection testing and ASTM D5858 for overlay design, integrating subrasante vial characterization to determine remaining structural life. This baseline is essential before any rehabilitation or overlay strategy is approved.

In Pasadena's alluvial environment, deflection-based evaluation reduces the risk of premature overlay failure by identifying weak subgrade pockets before design.

Service characteristics in Pasadena California

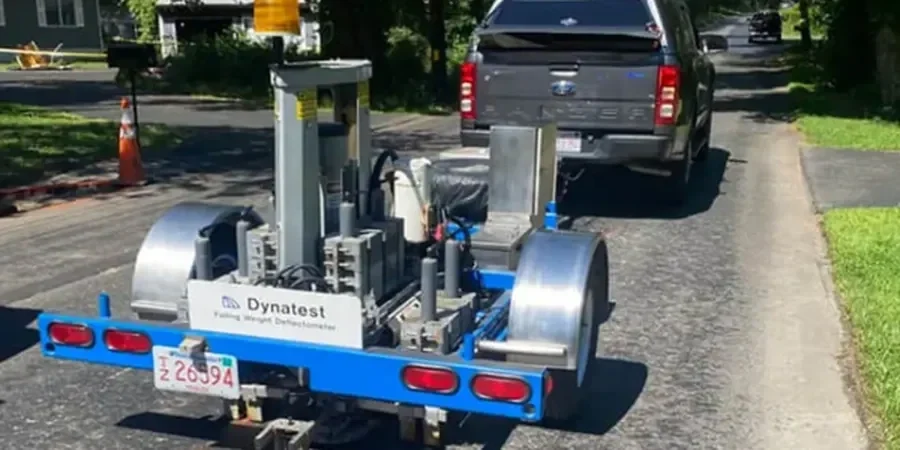

Pasadena's soil profile typically shows medium-dense sands over older alluvium, with the groundwater table often below 15 meters in most areas. This influences how we design our existing pavement evaluation: we prioritize non-destructive deflection testing using a falling weight deflectometer to map modulus values across the network, then correlate with ensayo CBR from extracted samples. The local geology also requires careful assessment of expansive clay lenses in the upper 2 meters, which we evaluate through limites Atterberg tests to predict volume change potential. Our approach includes:

Traffic loading analysis per AASHTO Guide for Design of Pavement Structures
Distress mapping (fatigue cracking, rutting, block cracking)
Core recovery for thickness verification and material sampling

Existing Pavement Evaluation in Pasadena California — Geotechnical Assessment for Rehabilitation

Parameter	Typical value
Falling Weight Deflectometer (FWD) deflection basins	100–600 µm (typical range for flexible pavements)
Subgrade resilient modulus (Mr)	40–80 MPa (alluvial sands/silts)
Concrete core compressive strength (rigid pavements)	3,000–5,000 psi (typical for Pasadena)
CBR of subgrade	5–15 (in-situ, unsoaked)
Asphalt layer thickness (cores)	150–300 mm (typical for arterial roads)
Traffic equivalent single-axle loads (ESALs)	2–15 million (depending on road class)

Critical ground factors in Pasadena California

Post-war suburban expansion in Pasadena saw rapid construction of residential streets and arterial corridors over undocumented fill and variable alluvial deposits. Many of these pavements now exhibit differential settlement and longitudinal cracking due to inadequate subgrade preparation — a pattern we see repeatedly. Without a proper existing pavement evaluation, overlay projects risk transferring cracks through the new layer within three to five years. The geology of the Raymond Basin, with its perched water tables in some neighborhoods, compounds this by weakening the subgrade during wet seasons.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Applicable standards: ASTM D4694-09: Standard Test Method for Deflections with a Falling Weight Type Impulse Load Device, ASTM D5858-96: Standard Guide for Overlay Design for Rigid and Flexible Pavements, AASHTO Guide for Design of Pavement Structures (1993, with 1998 supplement), IBC 2021 Chapter 18: Soils and Foundations (for subgrade bearing)

Our services

We offer two complementary existing pavement evaluation services tailored to Pasadena's urban and suburban road networks:

Non-Destructive Deflection Testing

FWD and lightweight deflectometer surveys to assess structural capacity, identify weak zones, and compute overlay thickness. Data reduction includes back-calculation of layer moduli per AASHTO procedures.

Destructive Coring & Sampling

Full-depth coring for asphalt and concrete pavements, plus subgrade sampling for CBR, moisture content, and Atterberg limits. Cores are logged for thickness, cracking, and stripping potential.

Common questions

How long does an existing pavement evaluation typically take for a standard city block in Pasadena?

For a typical four-lane arterial segment of about 400 meters, field testing (FWD + coring) takes one to two days. Laboratory analysis and report preparation add another five to seven business days, depending on the number of test points.

What is the difference between FWD and falling weight deflectometer testing for pavement evaluation?

FWD and falling weight deflectometer refer to the same device. It applies an impulse load (typically 40–120 kN) to simulate a moving truck axle and measures the resulting deflection basin using geophones. This data is used to back-calculate layer moduli and estimate remaining life.

Can existing pavement evaluation be performed without closing the road to traffic?

Yes, FWD testing is conducted with minimal lane closures (usually one lane at a time) and can be done during off-peak hours. Coring requires a short full-lane closure for about 15 minutes per core, but we coordinate with Pasadena's traffic management to minimize disruption.

What is the typical cost range for an existing pavement evaluation in Pasadena California?

The cost for a comprehensive evaluation covering FWD testing, coring, laboratory analysis, and a design-ready report typically ranges between US$1.370 and US$3.710, depending on the number of test locations and the complexity of the pavement structure.
