The contrast between the well-graded sands of the Arroyo Seco floodplain and the stiff clays of the San Rafael Hills is striking. In Pasadena California, the alluvial fan deposits near the Rose Bowl require different geocell geometry than the colluvial slopes above Altadena Drive. We have designed confinement systems for both conditions. A 150-mm cell height works for the sandy fills along Colorado Boulevard, while the expansive clay zones near Eaton Canyon need deeper cells to resist volumetric changes. Before finalizing the geocell layout we always run a subgrade reaction modulus test on site to calibrate the design parameters.
Geocell confinement reduces differential settlement by up to 40% in Pasadena's variable alluvial soils, eliminating the need for over-excavation in many residential lots.
Service characteristics in Pasadena California
- Cell height: 100 to 200 mm depending on traffic load and subgrade CBR
- Weld spacing: 330 to 660 mm for slope and base applications
- Permeability: infill must drain within 24 hours to avoid hydrostatic pressure
Critical ground factors in Pasadena California
A common mistake among local contractors is assuming one geocell geometry fits all. In the steeper lots near Linda Vista, using 100-mm cells on a 3:1 slope without proper anchorage leads to panel creep after the first wet season. We have also seen failures where the infill material had too many fines, clogging drainage and causing uplift. Proper soil classification per ASTM D2487 and a site-specific anchor design are non-negotiable for long-term performance in Pasadena California.
Our services
We offer two complementary geocell design services tailored to Pasadena California conditions.
Slope Stabilization with Geocells

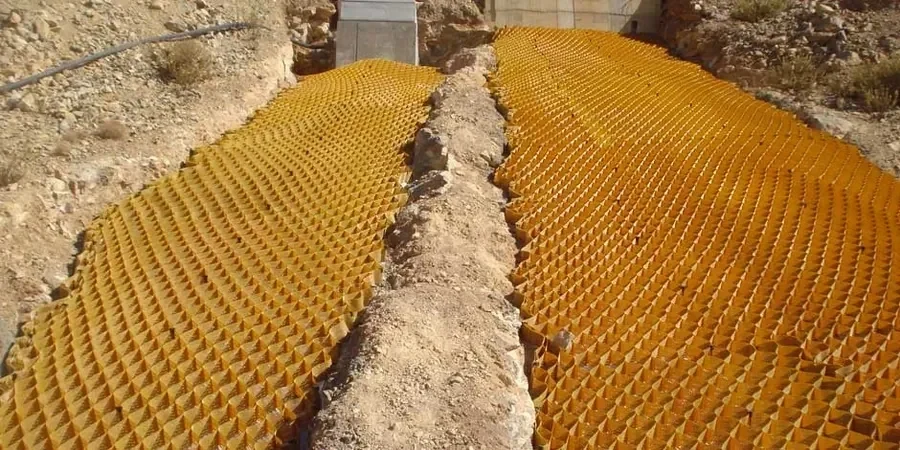

For cut slopes and embankments along the foothills, we design geocell-reinforced soil systems that resist shallow sliding and surface erosion. The infill is typically 20-40 mm crushed angular aggregate, placed in 150-mm cells and mechanically anchored at the toe. We calculate the factor of safety using Bishop's method modified for confined soil.
Load Support for Access Roads and Parking Areas
On the alluvial flats near the 210 freeway, we design geocell mattresses for unpaved access roads and event parking. The panels are 200 mm high, filled with recycled concrete aggregate or site-won sand. This reduces rutting by 60% compared to unconfined granular layers and eliminates the need for deep excavation.
Common questions
How does geocell design differ for Pasadena's alluvial soils versus the stiffer clays in the hills?
For the alluvial sands and silts near the Arroyo Seco, we use 150-mm cells with high weld spacing to allow lateral drainage. In the clay-rich colluvium of the San Rafael Hills, we increase cell height to 200 mm and specify a coarser infill to prevent clogging. Each site gets a unique geocell layout based on the soil's plasticity index and shear strength.
What is the typical cost range for a geocell design in Pasadena California?
A full design package including site assessment, panel layout, anchor calculations, and installation drawings ranges between US$730 and US$2,360. The final cost depends on slope steepness, infill source, and total area. We provide a fixed-price quote after reviewing the geotechnical report.
Can geocells be used on steep slopes in Pasadena without additional drainage?
Not recommended. Even with permeable infill, a 2:1 or steeper slope requires a subdrainage layer beneath the geocell. We typically specify a 150-mm granular blanket wrapped in geotextile, connected to toe drains. Without this, hydrostatic pressure builds up behind the cells and causes bulging or failure during heavy rain events common in Pasadena California.
