Prefabricated Vertical Drain Design in Pasadena, California

Much of Pasadena sits on alluvial fan deposits from the San Gabriel Mountains, with clay and silt layers extending 10 to 30 feet deep in the Arroyo Seco floodplain. These fine-grained soils often have low permeability and high water content, making them prone to long-term settlement under building loads. A prefabricated vertical drain (PVD) system shortens the drainage path, allowing excess pore pressure to dissipate faster and accelerating consolidation by months. Before finalizing any PVD layout, we always check the soil stratigraphy with a permeability lab test to confirm horizontal drainage coefficients. Pasadena's semi-arid climate means groundwater fluctuates seasonally, so PVD design must account for potential capillary rise and perched water zones near basements or underground parking structures. Our team has completed multiple PVD projects on the Raytheon campus redevelopment and along Colorado Boulevard, where soft clays under parking lots required staged loading with prefabricated vertical drains to hit allowable settlement limits.

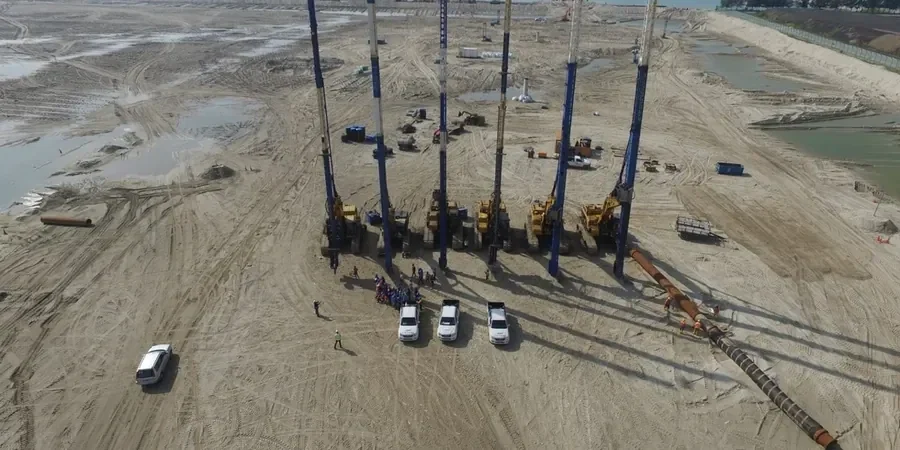

Illustrative image of Prefabricated vertical drain (PVD) design in Pasadena California

A 3.5-foot PVD spacing can achieve 90% consolidation in 3 months in Pasadena's San Gabriel clay, versus 2 years without drains.

Service characteristics in Pasadena California

Pasadena sits at roughly 864 feet above sea level, and its proximity to the Raymond Fault creates a basin that retains groundwater longer than neighboring cities. We typically design PVDs in a triangular or square grid pattern, with spacings between 3 and 6 feet depending on the required degree of consolidation. The key parameters we model include the coefficient of consolidation (cv and ch), the smear zone from mandrel installation, and the discharge capacity of the drain core. A typical design sequence looks like this:

Borehole sampling with Shelby tubes to obtain undisturbed samples for consolidation testing
Laboratory determination of ch via oedometer or Rowe cell tests
Numerical modeling with software like Plaxis or SEEP/W to simulate drain spacing and surcharge height

We also correlate the PVD layout with a MASW survey to map stiffness contrasts across the site and identify potential soft lenses that could cause differential settlement. For projects near the historic Playhouse District, we combine PVDs with preloading to reduce post-construction creep in the older fill layers.

Prefabricated Vertical Drain Design in Pasadena, California

Parameter	Typical value
Drain spacing	3 to 6 ft (triangular or square grid)
Typical drain depth	15 to 35 ft (through soft clay layers)
Discharge capacity (q_w)	≥ 1500 cm³/s per ASTM D4716
Smear zone ratio (d_s / d_m)	1.5 to 2.5 (mandrel dependent)
Target degree of consolidation (U)	85 to 95% at design surcharge
Surcharge height	3 to 8 ft (sand or gravel fill)

Live process video

Critical ground factors in Pasadena California

ASCE 7-22 and the California Building Code (CBC) mandate that structures in Seismic Design Category D (Pasadena's classification) must consider earthquake-induced settlement in soft soils. Without proper prefabricated vertical drain design, cyclic loading during a seismic event can cause liquefaction in saturated silts and clays, leading to bearing failure or lateral spreading. We have seen this risk materialize on projects near the Eaton Wash channel, where shallow groundwater amplifies pore pressure buildup. Our designs incorporate a factor of safety against liquefaction by ensuring that the treated soil reaches at least 90% consolidation before the surcharge is removed, and we cross-check results with a liquefaction analysis using the NCEER method.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.biz

Applicable standards: ASTM D4716 (discharge capacity of prefabricated drains), ASTM D2435 (one-dimensional consolidation properties), ASCE 7-22 (seismic settlement requirements for Site Class D/E), CBC Chapter 18 (soils and foundations)

Our services

We provide end-to-end support for PVD projects in Pasadena, from feasibility studies to construction monitoring.

PVD Layout & Spacing Optimization

We run numerical models to determine the optimal drain spacing, depth, and pattern based on your target consolidation time and allowable settlement. The output includes a detailed installation grid and a phased surcharge schedule.

Consolidation Monitoring & Verification

During and after drain installation, we install settlement plates, piezometers, and inclinometers to track pore pressure dissipation and surface heave. Real-time data lets us adjust the surcharge rate and confirm when 90% consolidation is reached.

Common questions

How long does it take to install prefabricated vertical drains in Pasadena?

A typical PVD installation for a 20,000 sq ft site takes 5 to 10 working days, depending on drain depth and spacing. The mandrel rig can install about 200 to 300 linear feet per hour in San Gabriel clay. After installation, the surcharge period lasts 2 to 4 months to reach the required consolidation.

What is the typical cost range for a PVD design in Pasadena?

The design and engineering fee for a prefabricated vertical drain project in Pasadena typically ranges from US$840 to US$2,560, depending on site complexity, number of borings, and whether numerical modeling is required. Installation costs are separate and vary by contractor.

Do PVDs work in Pasadena's clay soils near the Arroyo Seco?

Yes, PVDs are very effective in the soft to medium stiff clays found along the Arroyo Seco floodplain. The key is to properly characterize the coefficient of horizontal consolidation (ch) through lab testing, because the smear zone from the mandrel can reduce drain efficiency. We have successfully designed PVDs at sites within 200 feet of the Arroyo channel.
