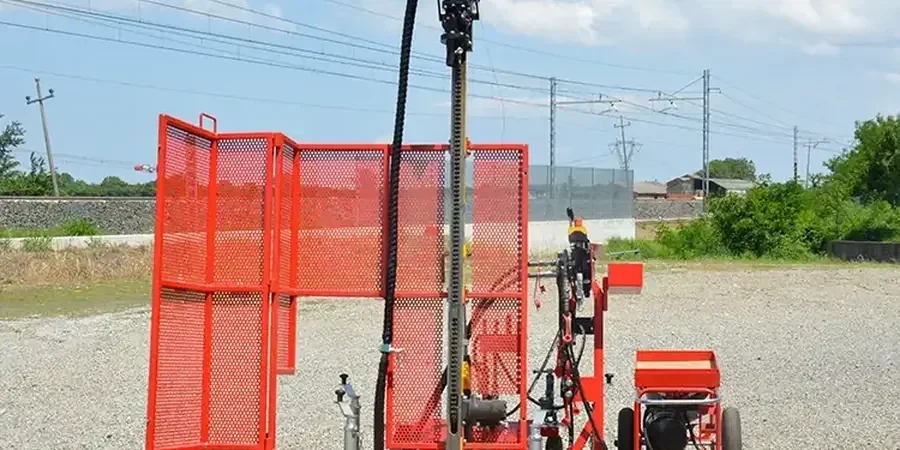

The SPT rig setup in Pasadena typically uses a 140-pound hammer dropped 30 inches to drive a 2-inch split-spoon sampler, producing N-values that directly inform bearing capacity estimates. This process, conducted across the alluvial fans and terrace deposits common in the San Gabriel Valley foothills, requires careful adjustment for overburden pressure and rod length corrections. For projects near the Arroyo Seco or the Raymond Fault zone, the team combines SPT data with a microzonificacion sismica study to evaluate liquefaction potential and seismic site class per ASCE 7. The split-spoon samples also provide disturbed material for index testing, linking field performance to lab classifications.
Corrected N60 values from SPT in Pasadena's alluvial deposits directly reduce uncertainty in seismic site classification, saving owners thousands in unnecessary deep foundations.
Service characteristics in Pasadena California
Critical ground factors in Pasadena California
In Pasadena, many times the team encounters cobble layers from old debris flows near the San Gabriel Mountains that cause premature refusal or rod binding, skewing N-values upward. Without careful drilling technique and refusal criteria per ASTM D1586, these readings can overestimate soil strength, leading to undersized footings in seismic zones. Another recurring issue is the shallow groundwater table during wet winters, which saturates the sand layers and requires correction for fines content to avoid misclassifying liquefaction hazard. The local practice is to pair SPT with a corte directo test on undisturbed samples to cross-check shear strength parameters where refusal seems artificial.
Our services
Beyond standard SPT execution, the Pasadena office offers complementary services that integrate directly with the test data for comprehensive geotechnical reports.
SPT with Seismic Site Classification
Full SPT program including N60 corrections, overburden adjustment, and VS30 correlation for seismic site class per ASCE 7, tailored to Pasadena's alluvial and terrace deposits.
Split-Spoon Sampling for Lab Index Tests
Disturbed samples retrieved during SPT for Atterberg limits, natural moisture content, and grain size analysis, following ASTM D2487 classification.
Energy Calibration and Quality Control
On-site energy measurement using instrumented rods and Pile Driving Analyzer (PDA) to ensure ERi within 50%–80%, with daily calibration logs.
Liquefaction Hazard Assessment (SPT-Based)
Using NCEER (Youd-Idriss 2001) methodology with SPT N60 values to compute factor of safety against liquefaction for Pasadena's seismic design categories.
Common questions
What is the typical cost range for an SPT in Pasadena, California?
For a standard borehole with SPT at 5-foot intervals to 50 feet depth, the cost ranges between US$580 and US$800 per borehole. This includes energy calibration, sample retrieval, and preliminary N60 corrections. Large projects with multiple holes may reduce the per-hole cost.
How deep should SPT borings be for a typical two-story home in Pasadena?
For residential structures on shallow foundations, SPT borings to 30 to 40 feet are standard to capture the bearing stratum and check for loose zones or perched water. Deeper borings (50+ feet) are needed if the design includes a basement or if the site lies near a known fault zone like the Raymond Fault.
What corrections are applied to raw SPT blow counts in Pasadena?
Raw N-values are corrected to N60 (60% energy efficiency) using measured hammer energy, then adjusted for overburden pressure with the CN factor. For saturated silty sands below the water table, a fines content correction is also applied per NCEER guidelines to avoid overestimating liquefaction resistance.
Can SPT alone determine the seismic site class for a project in Pasadena?
Not reliably. SPT provides N60 values for the upper 100 feet, which are used to estimate VS30 via correlation. However, ASCE 7 requires VS30 measurement (e.g., MASW) for definitive site class. SPT data is best used as a screening tool and to cross-check shear wave velocity correlations in the alluvial deposits typical of Pasadena.
