South Pasadena sits on dense alluvial fans while the central basin near the Arroyo Seco transitions to soft clays and silts. That contrast matters when you plan a preloading design without surcharge. The sandier north side drains fast, but the central corridor demands staged fills and careful pore pressure monitoring. We have run preloading design without surcharge on sites near Colorado Boulevard where the clay layer hit 18 feet thick. The approach works because we calculate the time-rate of consolidation using local oedometer data rather than generic curves. Before placing any fill we always run a clasificación de suelos to confirm the plasticity index and avoid surprises during the wait period.
A staged preloading without surcharge can achieve 90% primary consolidation in 6 to 10 months when vertical drains are spaced at 2.0 m.
Service characteristics in Pasadena California
- Vertical drains spaced at 1.5 to 2.5 m accelerate the process when the clay layer exceeds 6 m.
- Field vane shear tests give us the undrained shear strength needed to verify fill stability.
Critical ground factors in Pasadena California
Pasadena California grew rapidly after the 1880s, filling low-lying areas with uncontrolled debris and later grading hillsides for residential tracts. That legacy creates hidden soft zones where a preloading design without surcharge must account for variable fill thickness and buried organic material. We have seen cases where the original streambed was never mapped, and the preload fill triggered differential settlements of over 100 mm. A thorough subsurface investigation using CPT and borings is non-negotiable before you lock in the fill schedule.
Our services
We provide complete preloading design services for Pasadena California, from initial site characterization to final settlement verification.
Preload Fill Design and Staging
We define lift thickness, wait periods, and surcharge geometry based on the site-specific consolidation parameters and the time available for the project.
Vertical Drain Layout and Specification

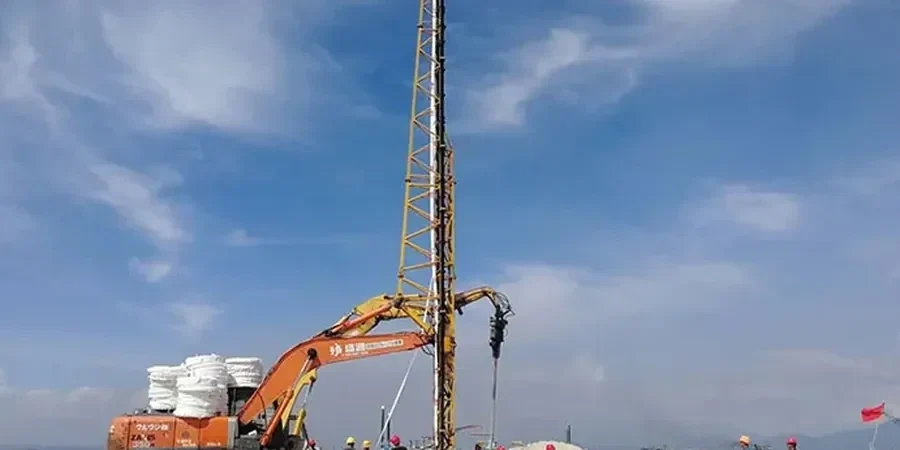

When the clay layer exceeds 4 m we design PVD or sand drain spacing to achieve the target degree of consolidation within the construction window.
Settlement Monitoring and Verification
We install settlement plates, piezometers, and inclinometers to track pore pressure dissipation and surface heave during the preloading phase.
Post-Preload Remaining Settlement Assessment
After removing the fill we run a series of laboratory consolidation tests on undisturbed samples to confirm the residual settlement meets the project tolerance.
Common questions
How long does a preloading design without surcharge typically take in Pasadena California?
For most sites in Pasadena California the preload period ranges from 4 to 12 months, depending on the clay layer thickness and the vertical drain spacing. We usually target 90% consolidation based on the local consolidation curves.
Can I use preloading without surcharge on the soft clays near the Arroyo Seco?
Yes, but you need to account for the higher plasticity index and the slower drainage. We often combine the preloading design without surcharge with vertical drains to keep the schedule under 8 months. The Raymond Fault influence on groundwater can also affect the dissipation rate.
What is the typical cost range for a preloading design study in Pasadena California?
The cost for a preloading design study without surcharge in Pasadena California is between US$840 and US$2,260, depending on the number of borings, laboratory tests, and the complexity of the settlement analysis.
